Cast Alnico 5 Rod Magnet RR8-625

[RR8-625]

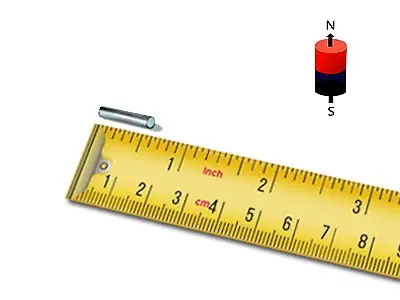

Click image to enlarge

Specifications

Cast Grade 5 Alnico Rod Magnet Product Details

This Cast Grade 5 Alnico Rod Magnet measures 0.125" in diameter x 0.625" in length (3 mm D x 15.8 mm L).

The standard dimensional tolerance for this magnet is +/-0.005" on both diameter & length.

* $15.00 total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Part Number	Quantities	1	10	25	50	100	250	500+
RR8-625		$0.95	$0.70	$0.56	$0.45	$0.37	$0.31	$0.22

Quantity:

Price Each: $0.95

Total Price: $0.95

Back to Items

RR8-625 Alnico Rod Magnet Technical Data
Grade: 5
Type: Cast
Standard Dimensional Tolerance: +/-0.005" on both Diameter (D) & Length (L)
Magnetization: Axially Magnetized Through the Length (L)
Br: 12,500 Gauss
BHmax: 5.5 MGOe
Hc: 640 Oersteds
Max Operating Temperature: 1004ºF/540ºC
Curie Temp: 1580ºF/860ºC
Density (lb/in3): 0.265
