N42 Neodymium Block Magnet 42NE242416-NI

[42NE242416-NI]
Click image to enlarge
Specifications
  • Grade: 42
  • L (in): 0.375
  • W (in): 0.375
  • THK (in): 0.250
  • Shape: Square
  • Finish: Nickel
  • Approx. Pull: 9.3 lbs.

N42 Neodymium Block Magnet Product Details

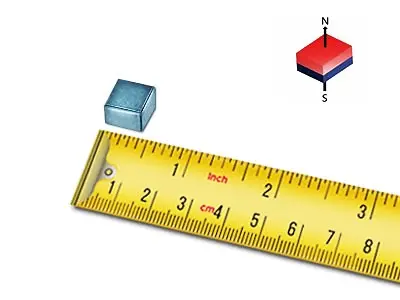

  • This strong grade 42 neodymium block magnet measures 0.375” in length & 0.375” in width & 0.250” in thickness (9.5mm L & W x 6.4mm THK) with an approximate pull force of 9.3 lbs (4.2 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Quantity:
Price Each: $5.38
Total Price: $5.38
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

Item: 42NE242416-NI
Grade: 42
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br Range: 12,800 ~ 13,500 Gauss
BHmax Range: 40 ~ 44 MGOe
HC (Min. Value): 10,800 Oersteds
HCi (Min. Value): 12,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
