N50 Neodymium Ring Magnet 50NEG604505-NI

[50NEG604505-NI]

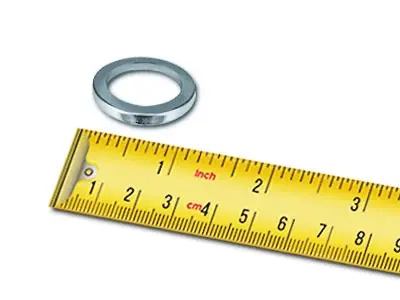

Click image to enlarge

Specifications

Grade: 50
OD (in): 0.945
ID (in): 0.709
THK (in): 0.079
Finish: Nickel
Type: Straight Hole
Approx. Pull: 5 lbs.

N50 Neodymium Ring Magnet Product Details

This grade 50 neodymium ring magnet measures 0.945” in outside diameter x 0.709" in inside diameter x 0.079” in thickness or (24 mm OD x 18 mm ID x 2 mm THK) with an approximate pull force of 5 lbs (2.27 kg).

Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

*15.00 total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Volume Discounts
1+:
$6.70
5+:

$5.58
10+:

$4.97
25+:

$4.32
50+:

$4.00
100+:

$3.62
250+:

$2.52
500+:

$2.33
1000+:

$2.16

Part Number	Quantities	1	5	10	25	50	100	250	500	1000+
50NEG604505-NI		$6.70	$5.58	$4.97	$4.32	$4.00	$3.62	$2.52	$2.33	$2.16

Quantity:

Price Each: $6.70

Total Price: $6.70

Back to Items

Neodymium (NdFeB) Disc Magnet Technical Data

Item: 50NEG604505-NI
Grade: 50
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Outer Diameter (OD), Inner Diameter (ID) & Thickness (THK)
Br Range: 13,900 ~ 14,201
BHmax Range: 47 ~ 51 MGOe
HC (Min. Value): 13,900 Oersteds
HCi (Min. Value): 11,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
